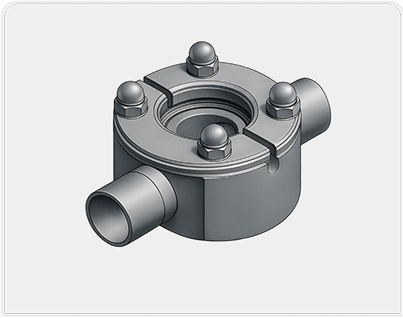

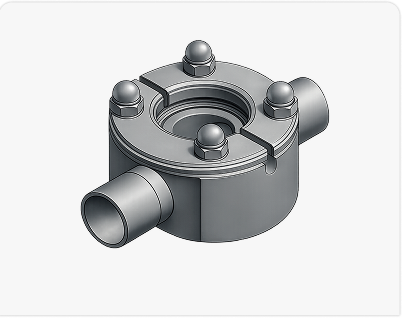

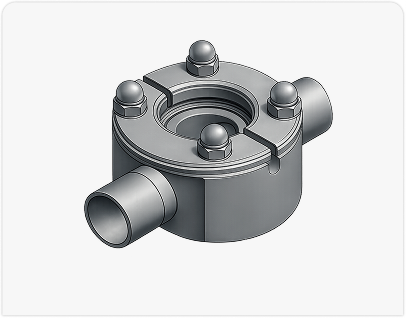

bio-plus® Inline Instrument Ports provide hygienic access points for process measurement, inspection, and instrument integration. They are suitable for gases and liquids and are available in different connection formats to match DIN, ISO, and OD pipe standards.
Hygienic inline
process port
design
Suitable for
gases
and liquids
Ingold25 process
port option
available
DIN32676
TC connection
options available
DIN11864-3
connection option
available
Product-contact
parts marked
for traceability
DIN, ISO, and
OD pipe
standards supported
Electropolished
product-contact
surfaces
316L / 1.4435
product-contact
material options
EN 10204 / 3.1
certification
available
FDA, USP Class VI
and TSE-free
gasket options

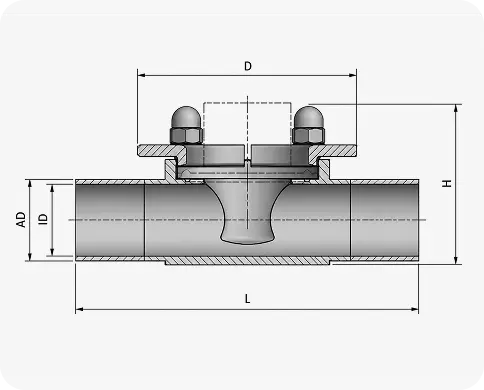

Minimal dead space instrument port with Ingold25 Connection. Process connections in all standards and connection types according to liquitec's order key. Smart application to insert dead space free PH instruments, pressure or temperature instruments, sampling valves or sight glasses.

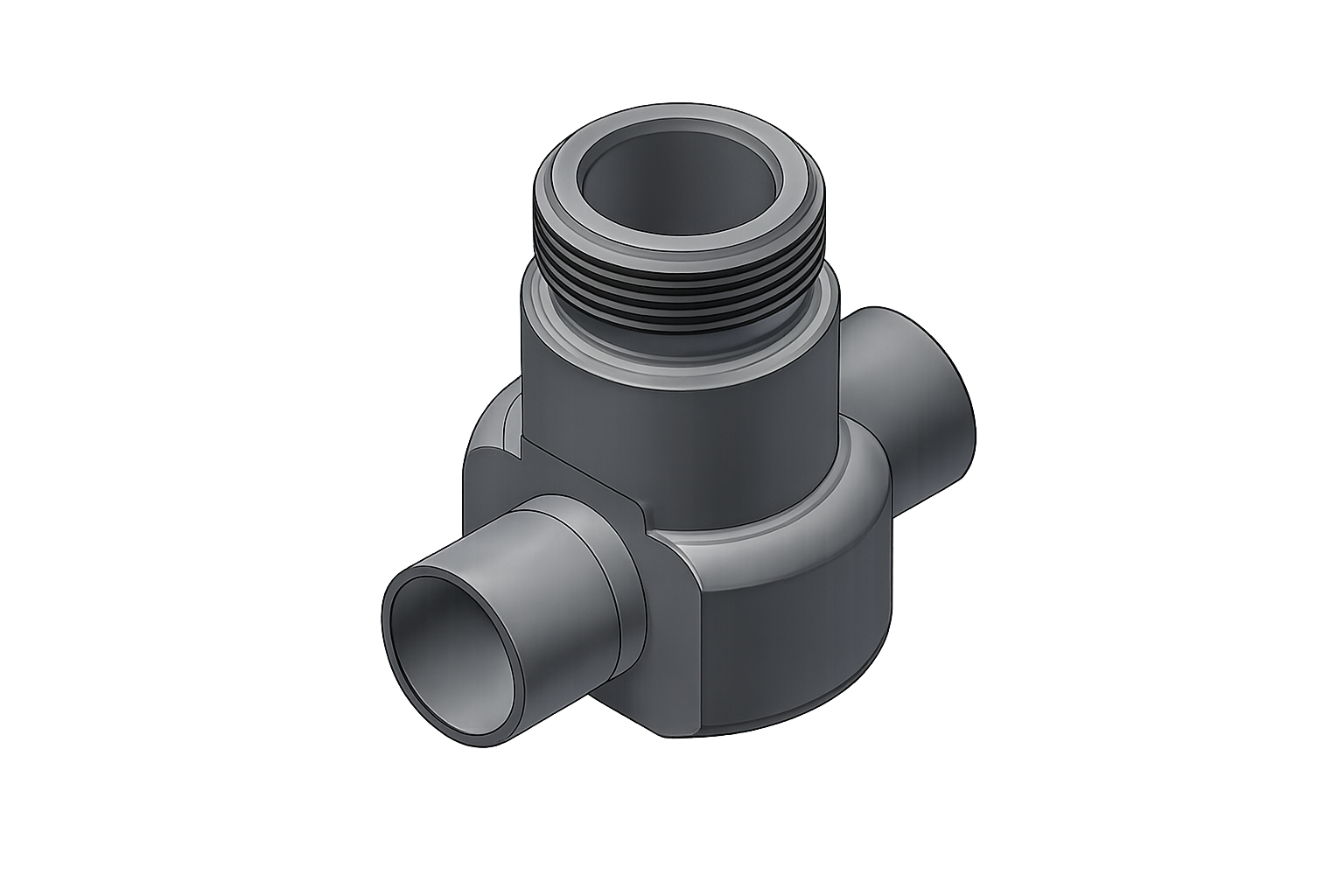

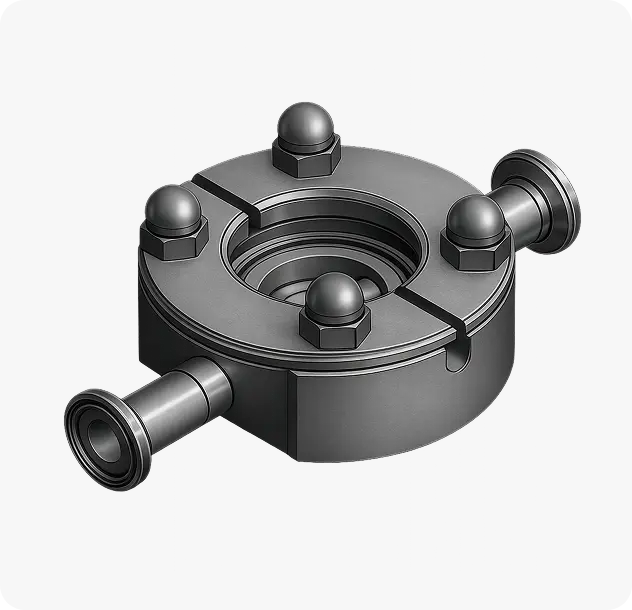

Minimal dead space instrument port with TC Connection according to DIN32767 or aseptic connection according DIN11864 3 or 2. Process connections in all standards and connection types according to liquitec's order key.

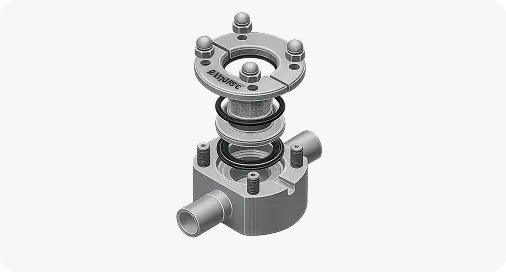

Manufactured in one piece to meet strict sterile process condition with no welding in the product area. But Weld-ends in all standards according DIN11866 or Tri Clamp connection according to DIN32676 or DIN11864.
| Specification | Details |
|---|---|
| Product range | Inline instrument ports / inline process ports |
| Port types | Ingold25, DIN32676 TC, DIN11864-3 |
Standard sizes | DIN04–DIN40, ISO06–ISO40, OD ¼"–OD1½" |
| Product-contact housing material | 1.4435 / 316L |
| Special materials | 2.4602, Titanium, 1.4539, 1.4404, etc. |
| Media | Gases and liquids |
| Operating pressure | 12 bar |
Product-contact surface | Electropolished Ra < 0.6 µm |
| Optional surface finish | Ra < 0.4 µm electropolished |
| Pipe standards | DIN11866 Series A, B, and C |
Traceability | Article number, material, and heat number marking |
Special opening pressure | 0.036 to 3.0 bar on request |
Documentation | EN 10204 / 3.1 |
Gasket compliance | FDA conform, USP Class VI, TSE-free |
Product-contact materialin 1.4435 / 316L
Special materials available on request
Product-contact surfaces are electropolished to Ra < 0.6 µm
Ra < 0.4 µm surface finish available on request
Non-product-contact surfaces electropolished based on product type
Product-contact parts marked with article number, material, and heat number
-40°C to +150°C
-60°C to +200°C
-20°C to +200°C
-200°C to +250°C
-10°C to +260°C
Customised Triclamp
connections
Special materials and
variants on request
The bio-plus® Inline Instrument Ports range can be selected based on connection type, pipe standard, nominal size, material, gasket option, and surface finish Special requirements, if any. liquitec can support customers in selecting the right configuration for their process application.
