Aseptic Connections for Hygienic Process Systems
DIN11864 Aseptic Connections are developed for process lines that require hygienic design, smooth product-contact surfaces, and dependable sealing. The range is suitable for gases and liquids and supports different connection formats to meet varied installation, maintenance, and process requirements.
Key Product Highlights
Aseptic
connection
design
Suitable for
gases
and liquids
DIN11864
standard-based
connection system
Electropolished
product
-contact surfaces
Multiple
connection
types available
FDA, USP Class
VI and TSE-free
gasket options
Product-contact
parts marked
for traceability

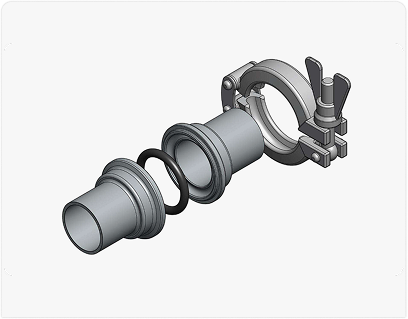

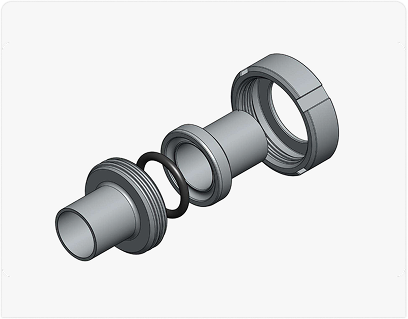

Available Connection Types
Technical Snapshot
| Specification | Details |
|---|---|
| Product-contact material | 1.4435 BN2 / 316L |
| Special materials | 2.4602, Titanium, 1.4539, etc. |
Non-product-contact material | 1.4305 or equivalent |
| Gasket options | EPDM, FEP/Silicone, FKM, Gylon, FFKM |
| Surface finish | Electropolished Ra < 0.6 µm |
| Media | Gases and liquids |
| Pipe standards | DIN, ISO, OD, SMS |
Applicable pipe dimensions | DIN11866 Series A, B, and C |
| Documentation | EN 10204 / 3.1 |
| Compliance | FDA conform, USP Class VI, TSE-free |

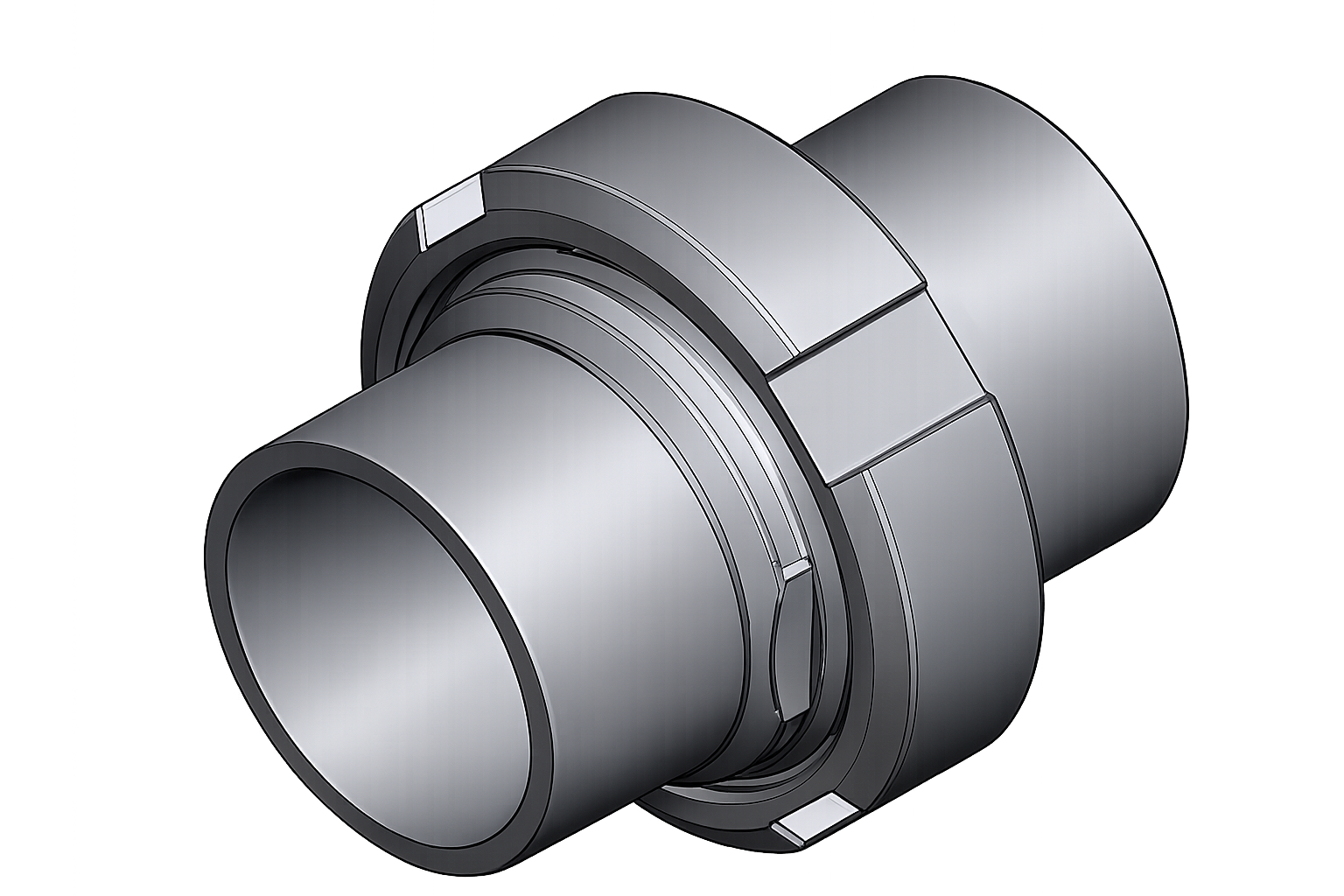

Materials and Surface Quality
-
Product-contact parts available in 1.4435 BN2 / 316L
-
Special materials available on request
-
Non-product-contact parts available in 1.4305 or equivalent
-
Product-contact surfaces are electropolished
-
Internal surface options include Ra < 0.6 µm and Ra < 0.4 µm
-
Other surface qualities available on request
-
Product-contact parts marked with article number, material, and heat number
Gasket Material Options
EPDM
-40°C to +150°C
FEP / Silicone
-60°C to +200°C
FKM
-20°C to +200°C
Gylon
-200°C to +250°C
FFKM
-10°C to +260°C

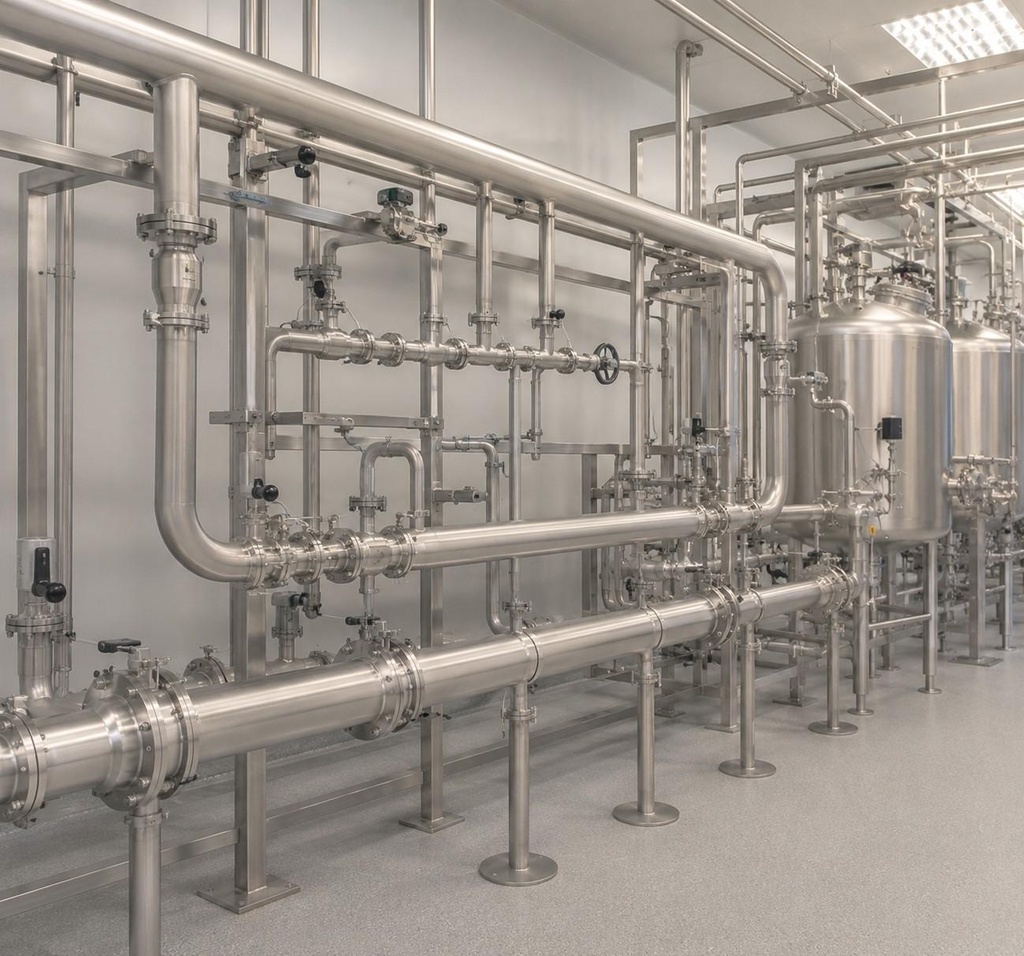

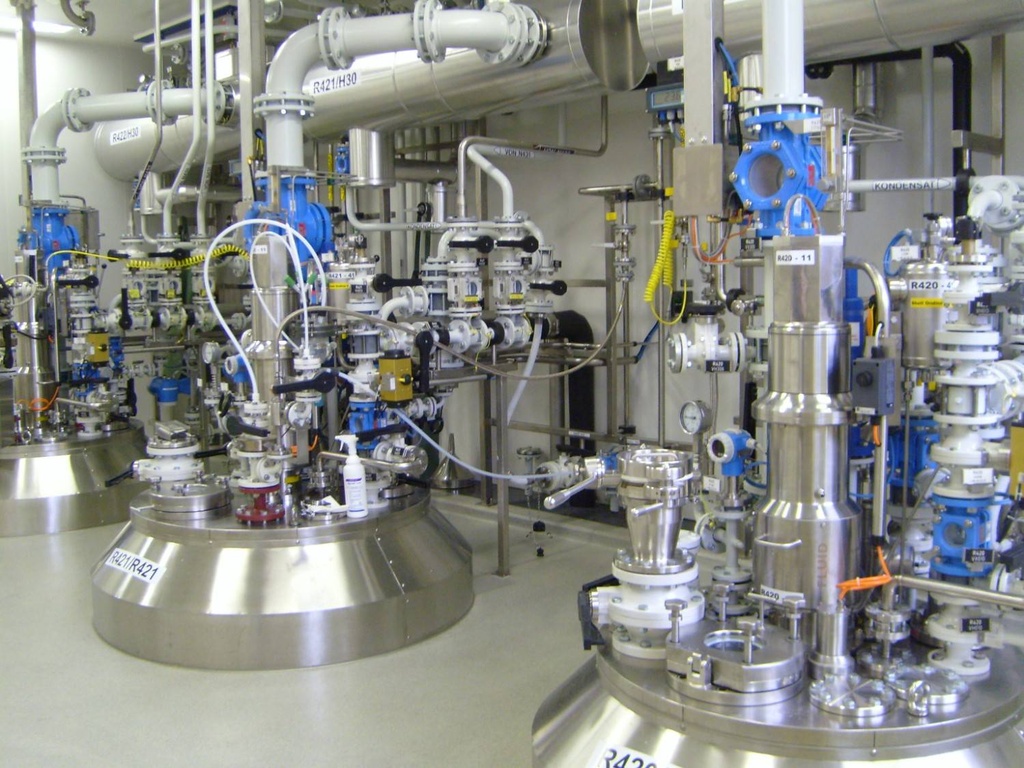

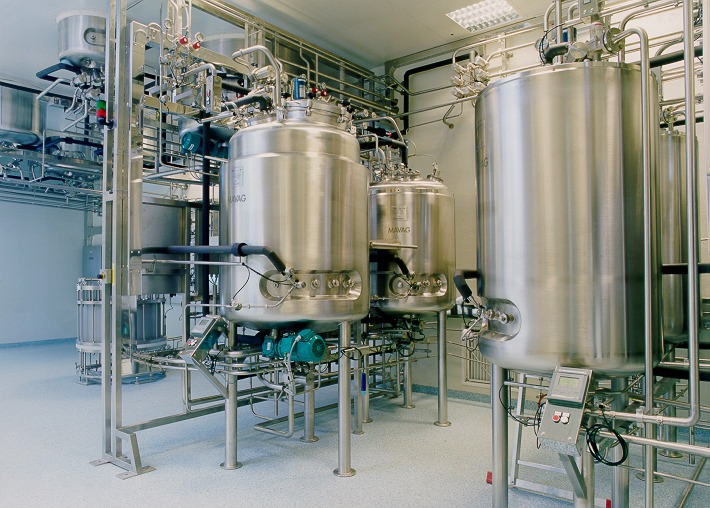

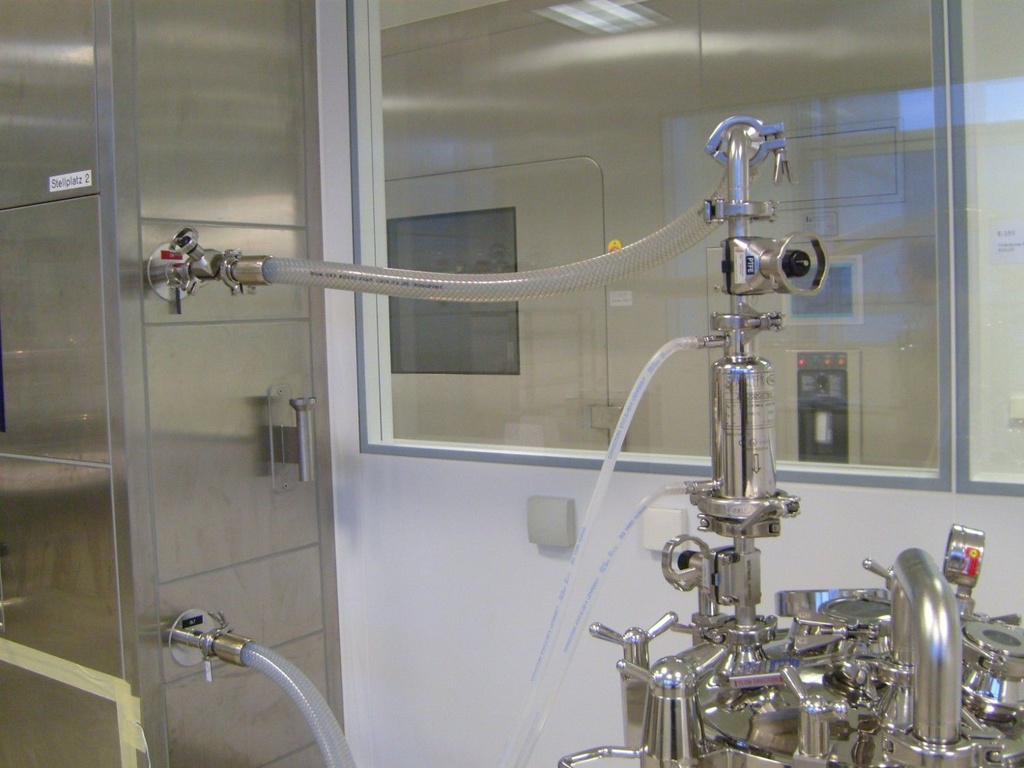

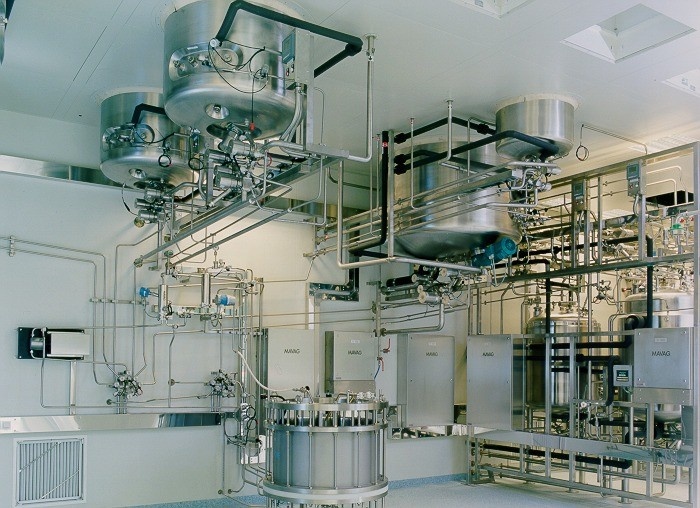

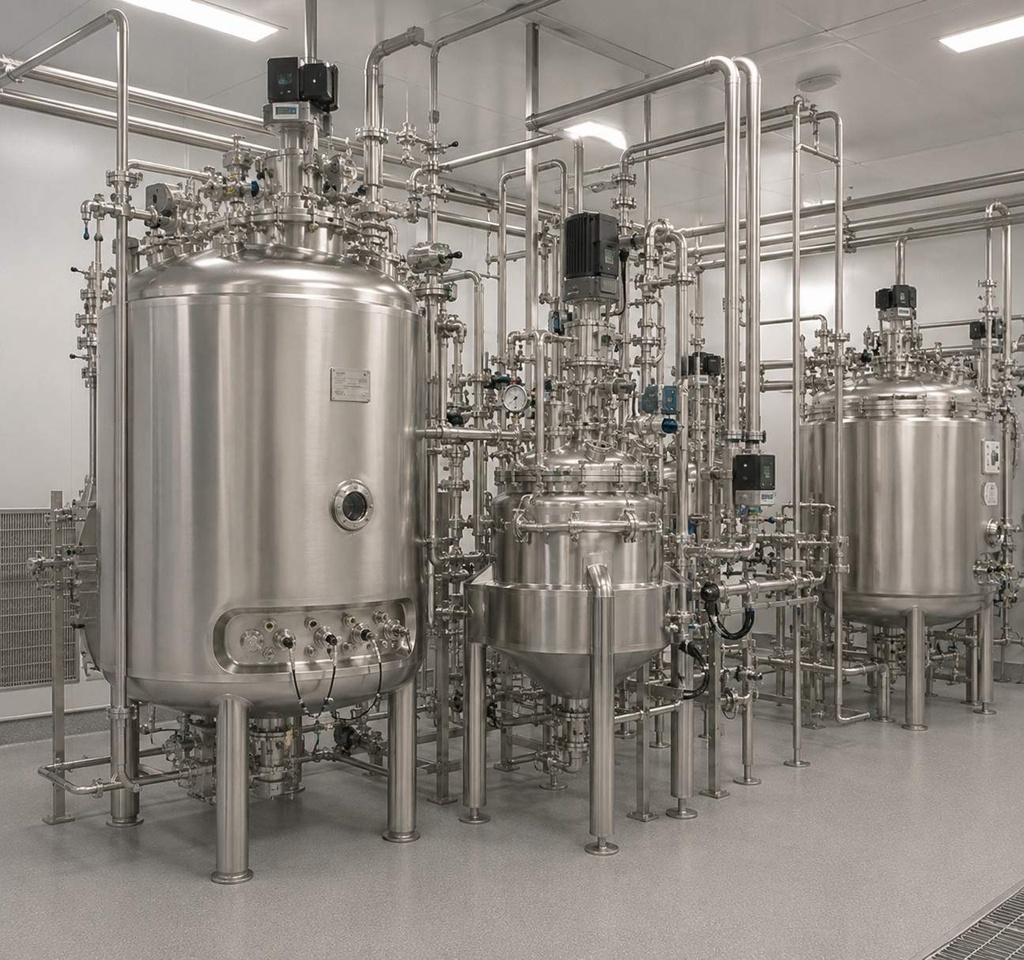

Applications
How to Order DIN11864 Aseptic Connections
The DIN11864 Aseptic Connections range can be selected based on connection type, pipe standard, nominal size, material, gasket option, and surface finish Special requirements, if any. liquitec can support customers in selecting the right configuration for their process application.
