Hygienic Strainers and Orifices for Process Connections

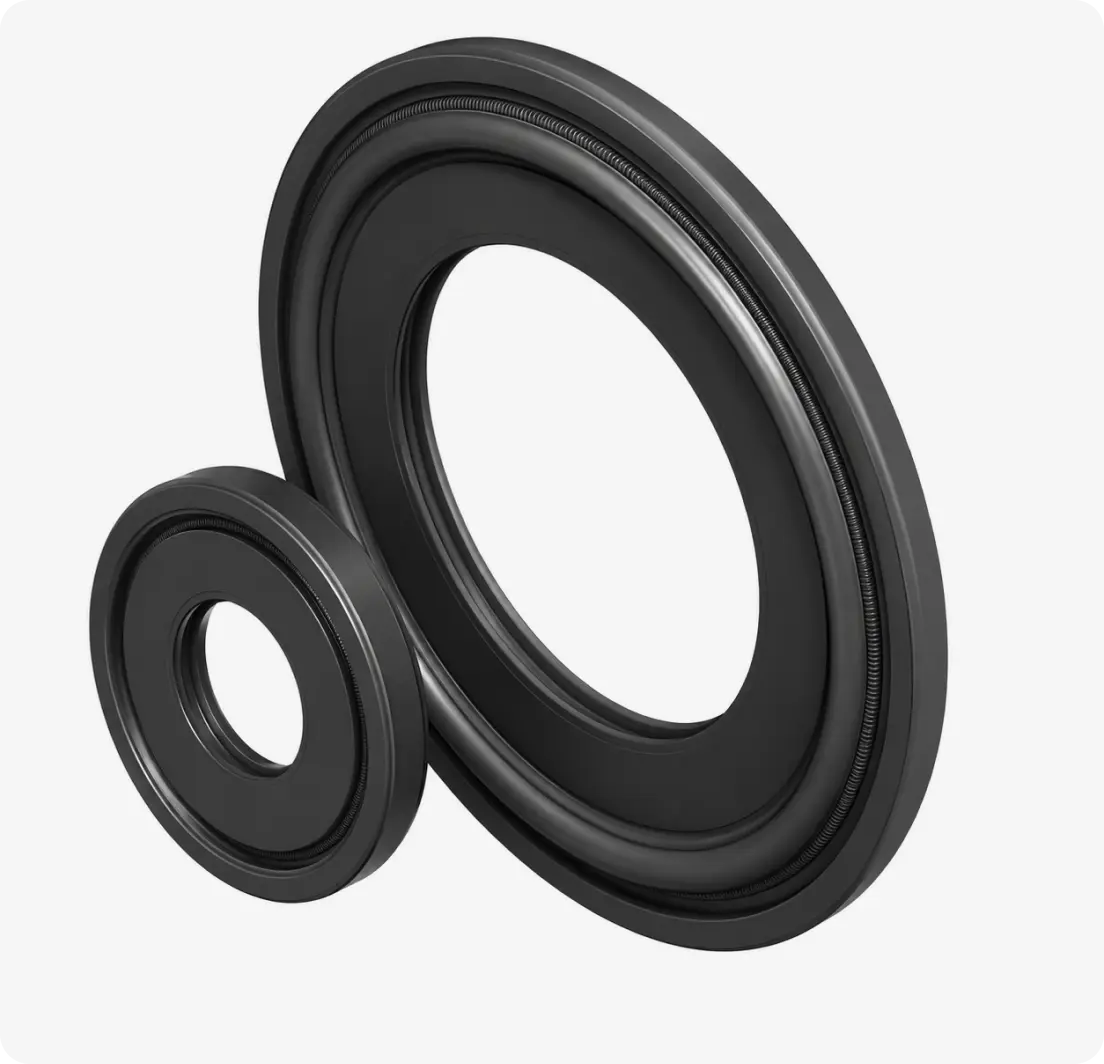

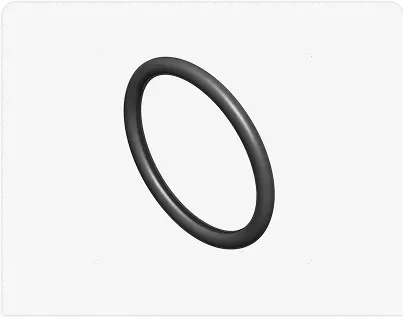

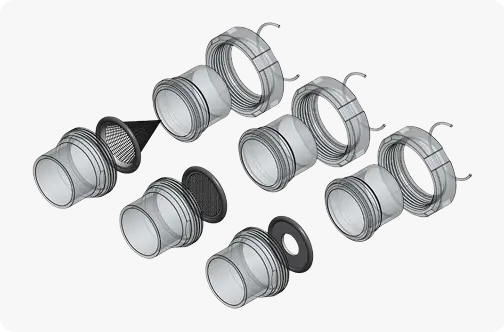

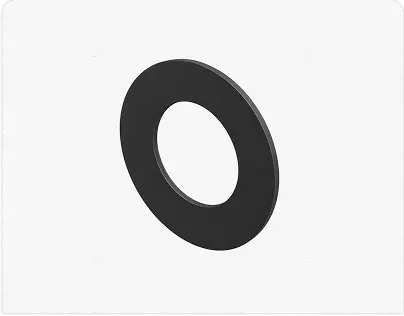

bio-plus® Strainers and Orifices are developed for hygienic process lines that require controlled filtration, flow restriction, or system protection. The range includes filter screens, orifices, O-rings with groove, clamp gaskets with groove, and flat seals for different hygienic connection systems.
Key Product Highlights
Suitable for
gases
and liquids
Designed for
hygienic process connections

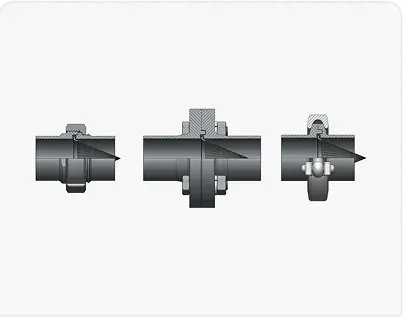

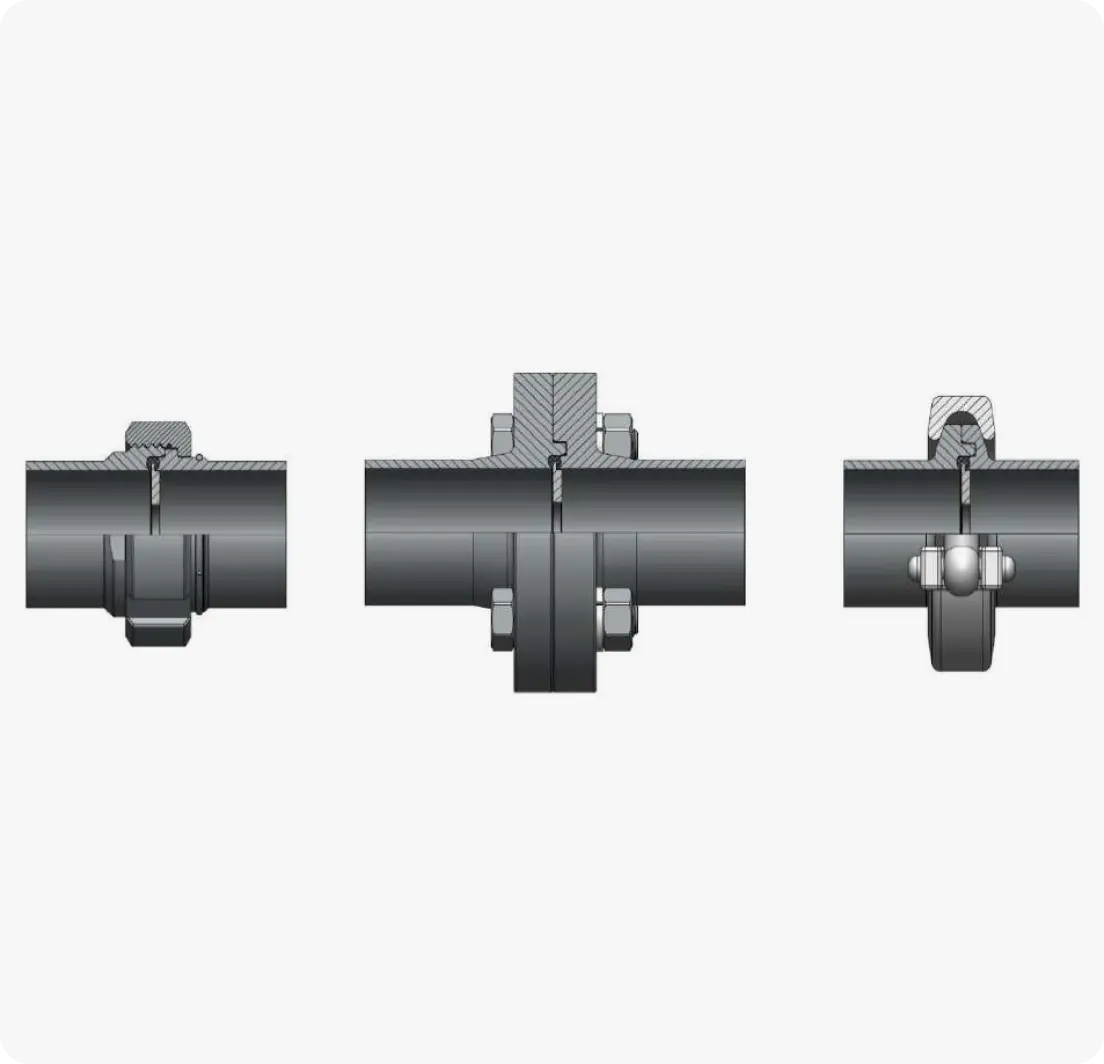

Compatible with
multiple connection
systems

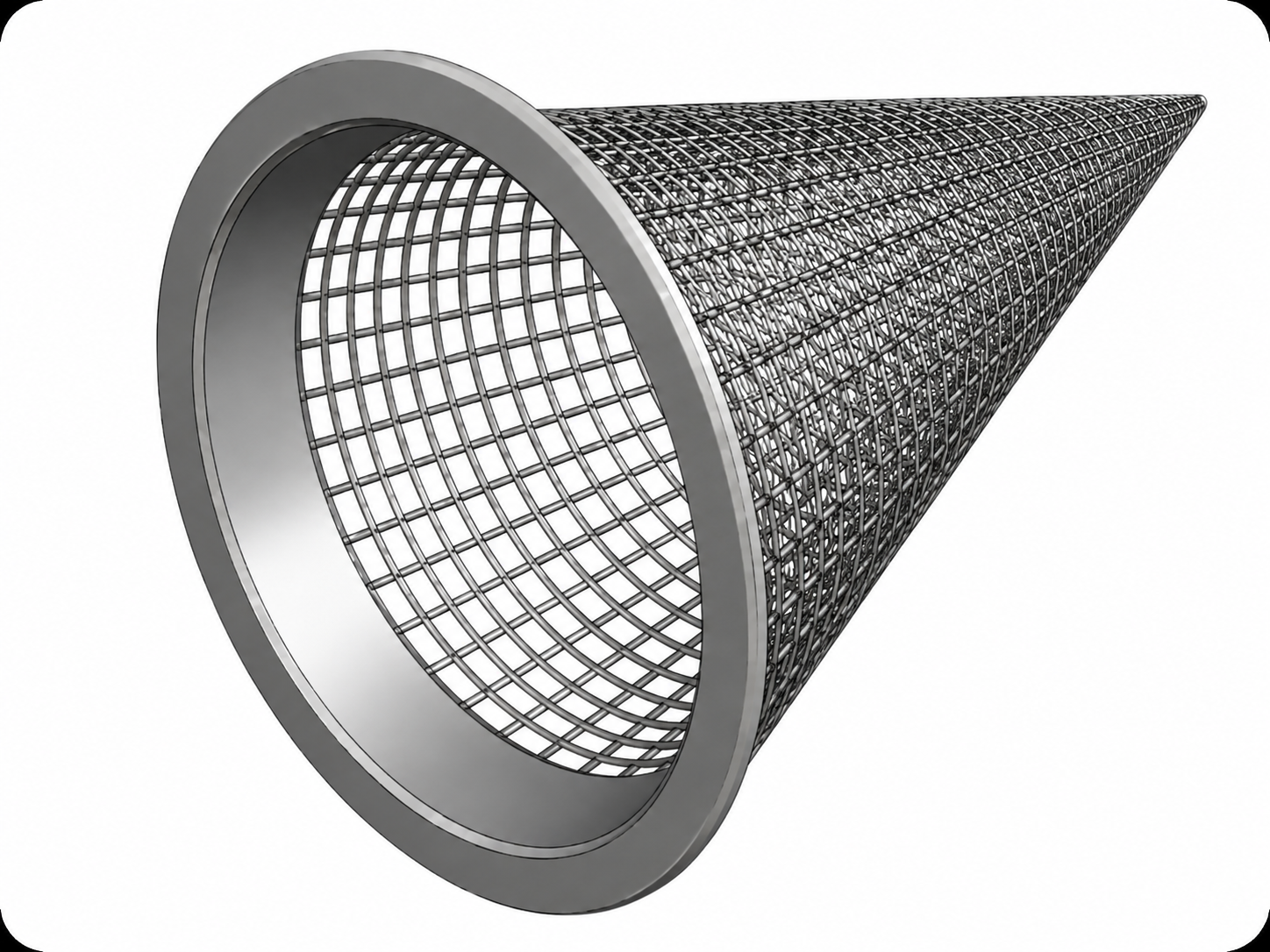

Standard filter
screen mesh
width of 400 µm
Other mesh
sizes available
on request

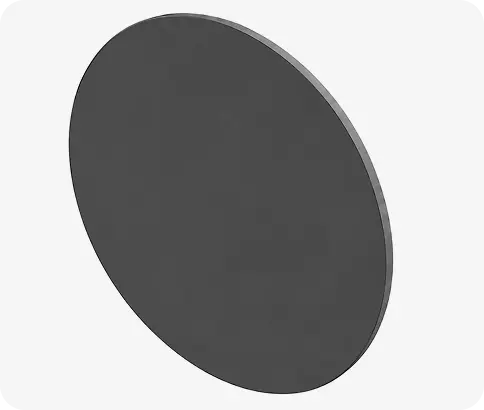

Orifice plates
available with or
without bore
Electropolished product-contact surfaces
FDA, USP Class
VI and TSE-free
gasket option
Special designs
available on
request
Available Product Types
designs on request
Technical Snapshot
| Specification | Details |
|---|---|
| Standard sizes | DIN10–DIN200, ISO08–ISO100, OD ½"–OD8" |
| Product-contact material | Carrier ring: 1.4435 / 316L |
Mesh material | 1.4404 / 316L |
| Special materials | 2.4602, Titanium, 1.4539, etc. |
| Gasket options | EPDM, Silicone / VMQ, FKM, FFKM |
| Surface finish | Electropolished Ra < 0.6 µm |
| Media | Gases and liquids |
Standard mesh width | 400 µm |
| Other mesh widths | 30 µm to 2000 µm on request |
| Standard orifice | Without bore |
Other orifice options | Centric and eccentric bore options on request |
Documentation | EN 10204 / 3.1 |
Compliance | FDA conform, USP Class VI, TSE-free |
Materials and Surface Quality
-
Carrier ring available in 1.4435 / 316L
-
Mesh available in 1.4404 / 316L
-
Special materials available on request
-
Product-contact surfaces are electropolished
-
Surface quality: Ra < 0.6 µm
-
Other surface qualities available on request
-
Traceability ensured through order number and heat number
Gasket Material Options
EPDM
-40°C to +150°C
Silicone
-55°C to +200°C
FKM
-20°C to +200°C
FFKM
-10°C to +260°C
Applications
How to Order bio-plus® Strainers and Orifices
The bio-plus® Strainers and Orifices range can be selected based on connection type, pipe standard, nominal size, material, gasket option, and surface finish Special requirements, if any. liquitec can support customers in selecting the right configuration for their process application.
