TC Blind Cap
Used to close unused or temporary TC connection points.
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.
Hygienic Clamp Connection System for Process Lines

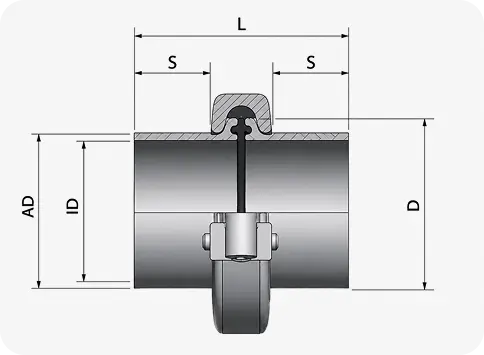

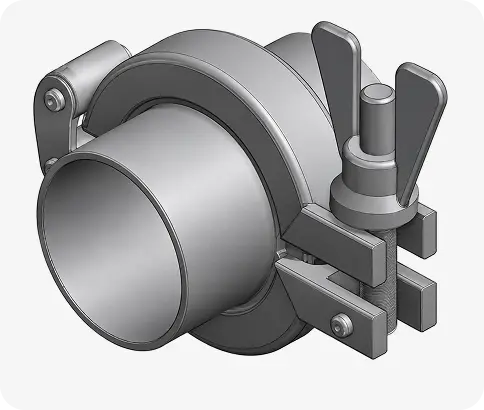

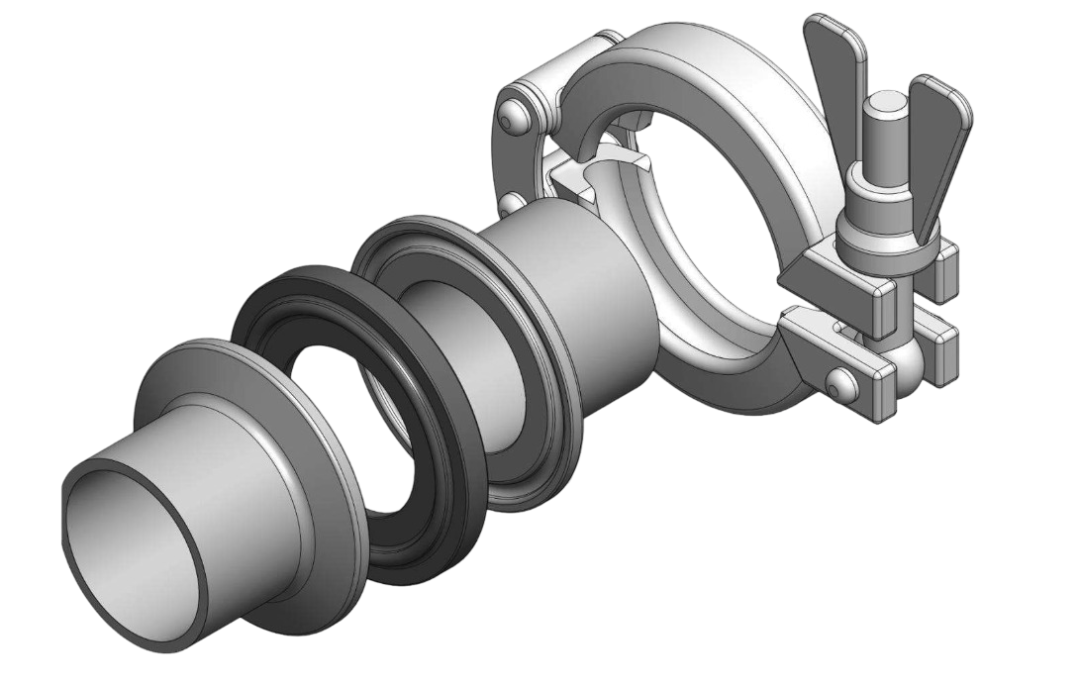

DIN32676 TC Connections are used to connect hygienic pipeline sections quickly and securely. The system includes ferrules, gaskets, and clamps, with supporting components such as blind caps and front sight glass options for closure and visual inspection.
Key Product Highlights
Hygienic TC
connection
system
Suitable for
gases
and liquids
TC ferrules available
in multiple sizes
and lengths
Blind caps and
blind caps with
handle available
TC front sight
glass option
available
Product-contact
parts marked
for traceability
Multiple TC
clamp types
available
DIN, ISO, and
OD pipe
standards supported
Electropolished
product-contact
surfaces
316L / 1.4435
product-contact
material options
EN 10204 / 3.1
certification
available
FDA, USP Class VI
and TSE-free
gasket options
Available TC Connection Components

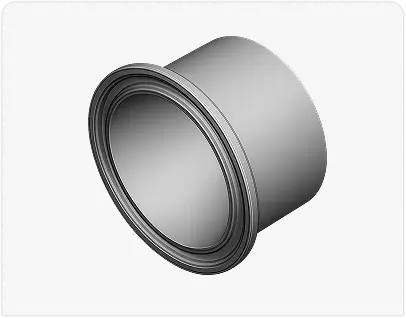

TC Ferrules
TC Clamps

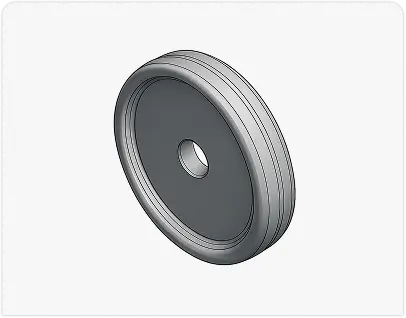

TC Gaskets
TC Blind Caps
TC Blind Caps with Handle
TC Front Sight Glass
DIN dimension TC ferrules
ISO dimension TC ferrules
OD dimension TC ferrules
Liquitec standard length options
Other ferrule lengths available on request
Clamp ferrules according to ISO2852 available on request
SMS pipe dimension options available on request

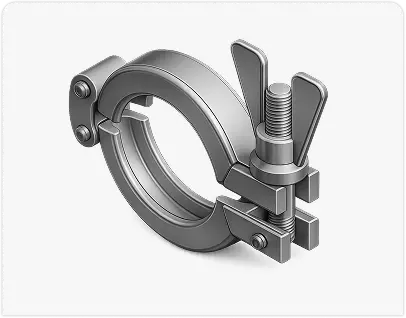

TC Clamp
Options
Closure and Inspection Options

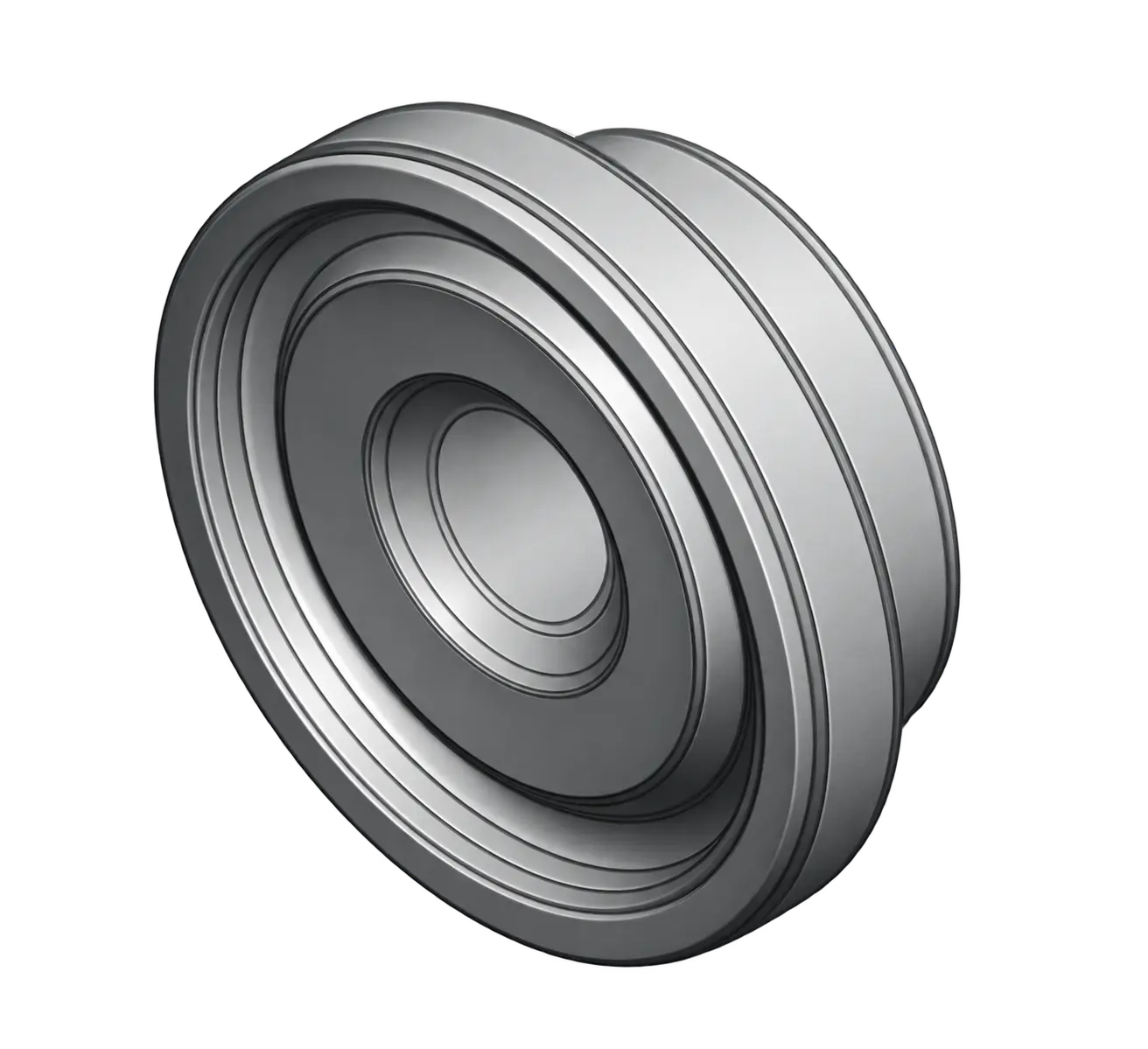

TC Blind Cap

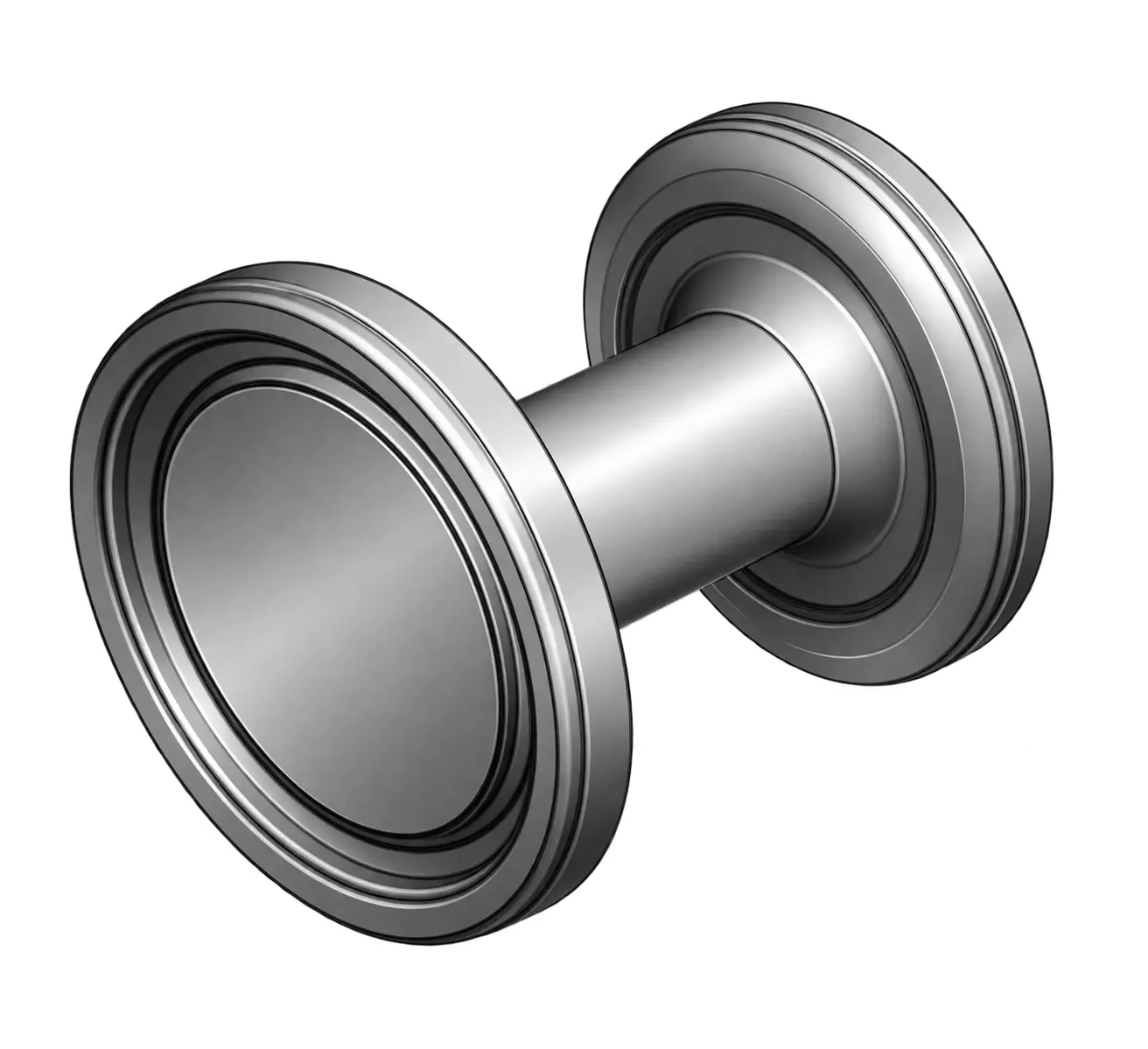

TC Blind Cap with Handle
Provides easier handling during opening and closing operations.

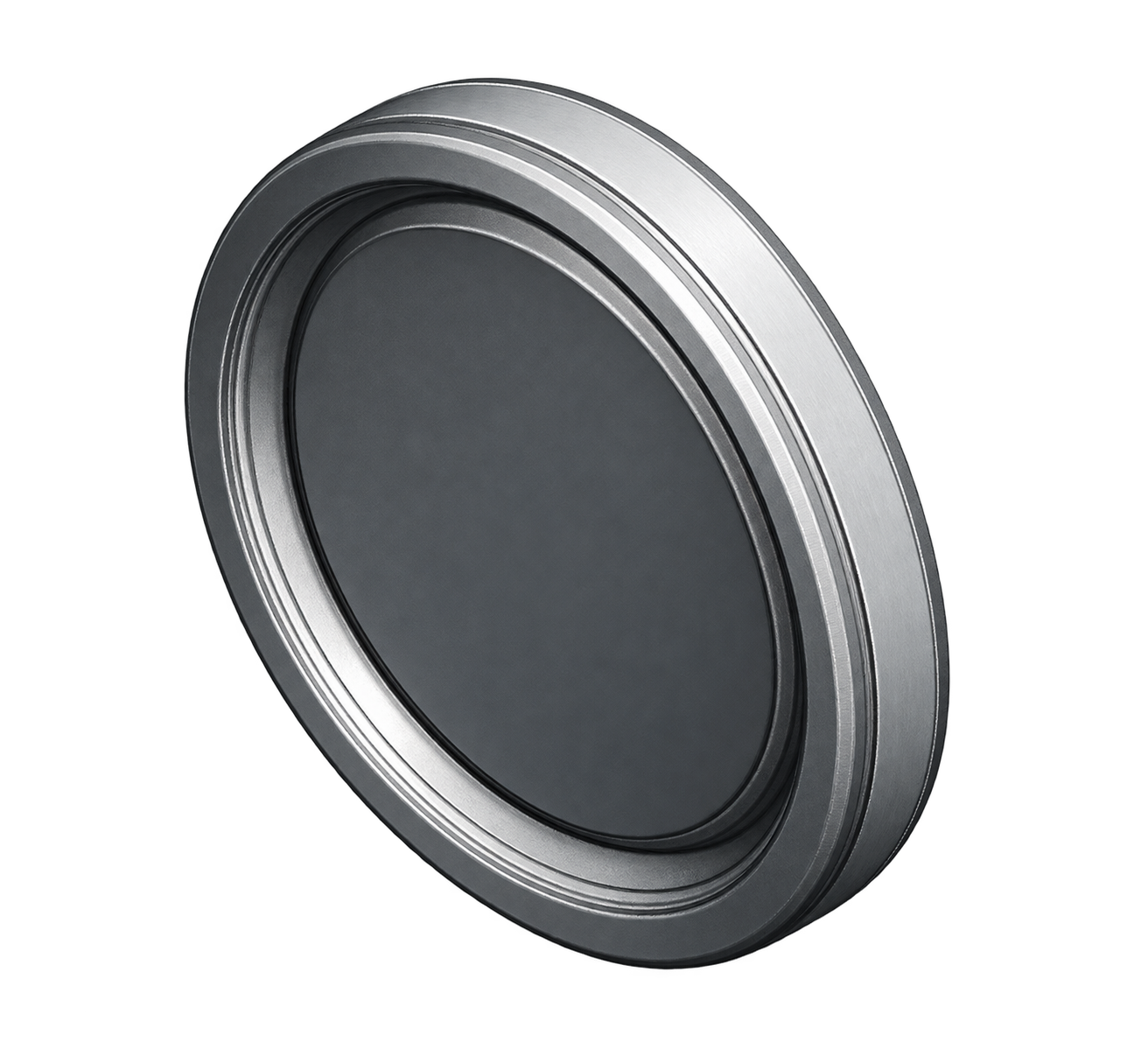

TC Front Sight Glass
Allows visual inspection of process media at the connection point.
Technical Snapshot
| Specification | Details |
|---|---|
| Product category |
DIN32676 TC Connection components |
| Product types | Ferrules, clamps, gaskets, blind caps, front sight glass |
Standard sizes | DIN04–DIN200, ISO06–ISO200, OD ¼"–OD6" |
| Product-contact material | 1.4435 / 316L |
| Special materials | 2.4602, Titanium, 1.4539, 1.4404, etc. |
| Media | Gases and liquids |
| Product-contact surface | Electropolished Ra < 0.6 µm |
Optional surface finish | Ra < 0.4 µm electropolished |
Non-product-contact surface | Electropolished Ra > 1.6 µm |
Pipe standards | DIN11866 Series A, B, and C |
| Documentation | EN 10204 / 3.1 |
| Gasket compliance | FDA conform, USP Class VI, TSE-free |
Size and Pressure Overview
Gasket Material Options
EPDM
-40°C to +150°C
FEP / Silicone
-60°C to +200°C
FKM
-20°C to +200°C
Gylon
-200°C to +250°C
FFKM
-10°C to +260°C
Materials and Surface Finish
-
Product-contact material in 1.4435 / 316L
-
Special materials available on request
-
Product-contact surfaces are electropolishedto Ra < 0.6 µm
-
Ra <
0.4 μm surface finish available on request
-
Non-product-contact surfaces electropolished to Ra > 1.6 µm
-
Product-contact parts marked with article number, material, and heat number
Applications
Pharmaceutical process lines
Biotechnology systems
Food and beverage processing
Sterile liquid transfer
Hygienic gas and liquid pipelines
High-purity process equipment
How to Order DIN32676 TC Connection Components
DIN32676 TC Connection components can be selected based on component type, pipe standard, nominal size, clamp diameter, material, surface finish, ferrule length, gasket material, and clamp type.
