ASME BPE Pipe Fittings with TC
Covers 90° bends, 45° bends, 180° bends, T-pieces, reduced T-pieces, cross pieces, concentric reducers, eccentric reducers, and orbital end caps.
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.
Hygienic Pipe Fittings for Process Line Integration
bio-plus® Tubes & Fittings are designed for hygienic process systems where clean line construction, smooth internal surfaces, and reliable material traceability are important. The range supports process line direction changes, branching, size reduction, and pipe termination across sterile and high-purity applications.
Key Product Highlights
Hygienic
pipe
fitting range
ASME BPE
fittings with
TC connections
DIN11865
concentric and
eccentric reducers
Pipe bends, tees,
cross pieces, reducers,
and end caps available
Product-contact
parts marked
for traceability
OD, DIN, and
ISO pipe
standard options
Electropolished
product-contact
surfaces
316L / 1.4435 BN2
product-contact
material options
EN 10204 / 3.1
certification
available
Special materials
available on
request
Available Tubes & Fittings Range

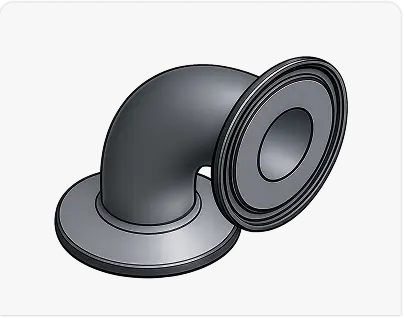

90° Pipe Bend

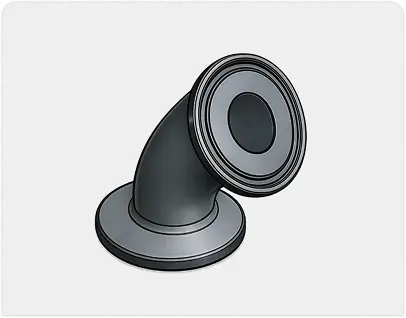

45° Pipe Bend

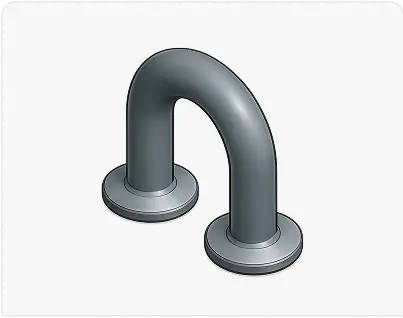

180° Pipe Bend

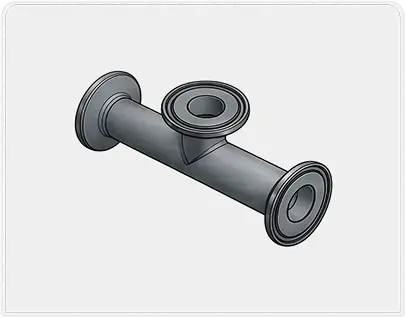

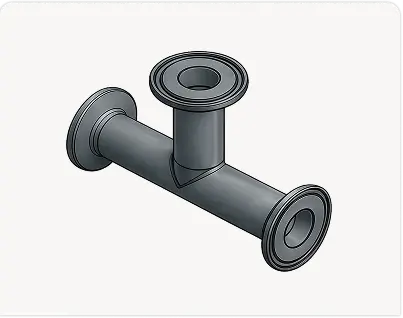

Equal T-Piece
Short Equal T-Piece

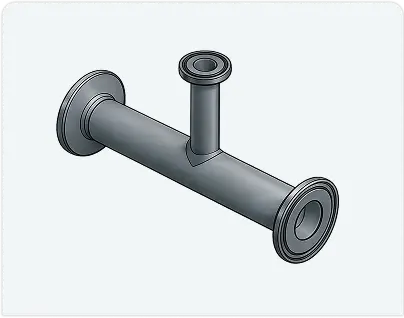

Reduced T-Piece

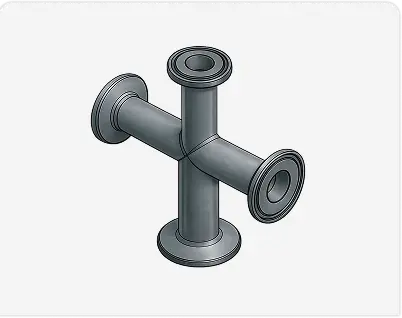

Cross Piece

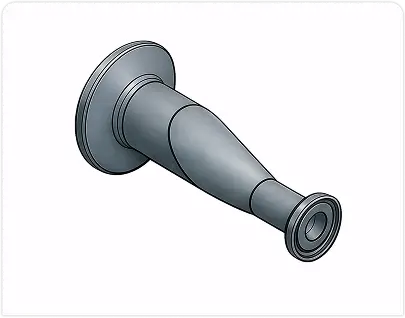

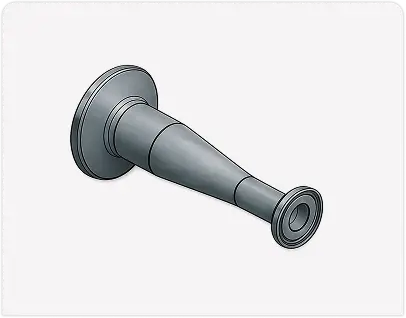

Concentric Reducer
Eccentric Reducer

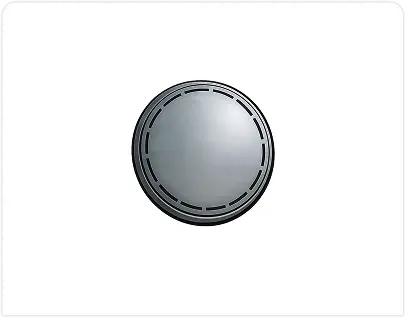

Orbital End Cap
Two Datasheets, One Product Category
bio-plus® DIN11865 Reducers
Covers concentric and eccentric reducers with weld-end connections across DIN, ISO, and OD pipe standards.
ASME BPE Pipe Fittings with TC Connections
The ASME BPE fitting range supports OD sizes from OD ½" to OD4", with surface finish options including SF1 and SF4 depending on the selected configuration.
DIN11865 Concentric and Eccentric Reducers
01
DIN11864 Concentric Reducer
Maintains the same centerline between two different pipe sizes.
02
DIN11864 Eccentric Reducer
Offsets the centerline between two different pipe sizes, useful for specific installation layouts and flow management needs.
DIN11865 reducers are available in DIN04–DIN100, ISO06–ISO100, and OD ¼"–OD4" size ranges.
Technical Snapshot
| Specification | Details |
|---|---|
| Product category | Tubes, pipe fittings, and reducers |
| Product types | Bends, T-pieces, cross pieces, reducers, end caps |
ASME BPE fitting sizes | OD ½" to OD4" |
| DIN11865 reducer sizes | DIN04–DIN100, ISO06–ISO100, 6OD ¼"–OD4" |
| Product-contact material | 316L / 1.4435 BN2 |
| Special materials | 2.4602, Titanium, 1.4539, 1.4404, etc. |
| Surface finish options | Ra < 0.5 µm SF1, Ra < 0.4 µm SF4, Ra < 0.6 µm electropolished |
Pipe standards | OD, DIN, ISO |
| Traceability | Article number, material, and heat number marking |
| Documentation | EN 10204 / 3.1 |
Size and Pipe Standard Overview
Materials and Surface Finish
-
Product-contact material available in 316L / 1.4435 BN2
-
Special materials available on request
-
Product-contact surfaces available in multiple finish options
-
Electropolished surface options available
-
Non-product-contact surfaces finished separately based on product type
-
Product-contact parts marked with article number, material, and heat number
Applications
Pharmaceutical process lines
Biotechnology systems
Food and beverage processing
Sterile liquid transfer
Hygienic gas and liquid pipelines
High-purity process equipment
How to Order bio-plus® Tubes & Fittings
The bio-plus® Tubes & Fitting can be selected based on connection type, pipe standard, nominal size, material, gasket option, and surface finish Special requirements, if any. liquitec can support customers in selecting the right configuration for their process application.
